Where Can I Buy a QEG?

We often get asked the question: “Where can I buy a QEG?” You cannot buy a ready made QEG from a supplier yet, you will need to build one yourself or hire someone to build one for you. You can use the manual to source the parts yourself or you can purchase the core and kit from Torelco. The FTW organization does not sell QEG’s, we build prototypes and teach others how to build through educational materials.



torelco winding company

ORDER QEG PARTS FROM TORELCO!

order qeg parts

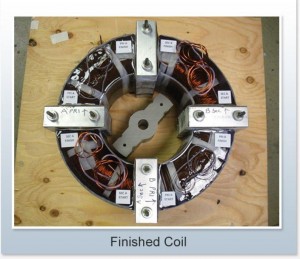

Torelco offers a fully processed core and supplemental kit to complete your QEG generator, or you can buy parts separately. (The photo above depicts an epoxied core. Non-epoxied cores are also available.)

Please refer to the QEG Build Manual  for detailed descriptions and photos of parts listed below.


Processed Core (delivered):

Generator Core, 12″ OD X 6″ ID, 15″ overall, 3-1/2″ stack, 84 lbs.
Spacer Blocks, Aluminum 6061-T6, 1-1/2″ X 1-1/2″ X 4-1/2″
Mica Tape, VonRoll 77956 Mica Mat, Polyester Resin Bonded 1″
Mica Plates, 2.25″ X 4.5″ X .030″, ‘C’ shape, prefabricated
Nomex corner insulation, hand cut
Tape, black, 1″ reinforced, high-strength
Sleeving, fiberglass w/PVC, for magnet wire
Tubing, Teflon, for #20 HTAIHSD
Tubing, Teflon, for #12 HTAIHSD
Magnet wire, HTAIHSD #20 RD NAT REA – Pulse Shield – Heavy MW35, 73, 36
Magnet wire, HTAIHSD #12 RD NAT REA – Pulse Shield – Heavy MW35, 73, 36
Tape, white, 1″ fiberglass, hi-temp
2X4s, plywood, misc. shipping pallet materials
Core complete. Processed and secured for shipping

Parts Kit Description (1 system):

7/8″ Shaft
Bonding Compound #648 50 ml
Primer/Activator #7471 4.5 oz.
Bearings
Bearing Hardware Kit
End Plates
End Plate Hardware Kit
Shrouds
Shroud Hardware Kit
V-Belt 4L430
Pulley AK30 x 7/8
Pulley AK25 x 7/8
DC PM Variable Speed Motor 90/180V Armature
Motor Mounting Hardware Kit
Variac – Staco 1520CT
Bridge Rectifier
Switch
Capacitors 940C30P15K-F
Terminal Lug T&B L70
Drill Rod, 1/4″ [6.35mm]Ø, Type A2, 1-1\8″ L
Platform (Base), Laminate, 18″ x 36″ x 1-1/2″
Core Mounting Shoe, Laminate, 15″ x 6-1/2″ x 1-1/2″
Core Mounting Shoe Hardware Kit
Exciter Coil Assembly

Torelco is working with FTW on best pricing and accessibility of parts available. Please contact Matt Peterson at mpeterson@torelco.com and include “QEG” in the subject line so we can expedite your order.

We are happy to provide this service and thank you for your patience in awaiting a reply to your inquiries.

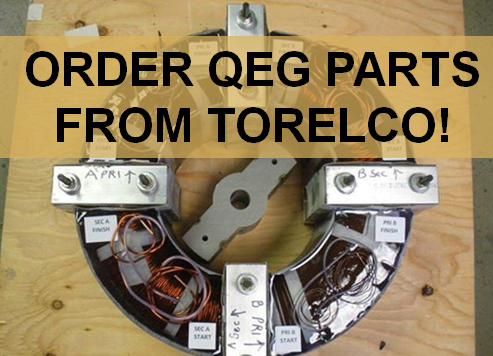

See Torelco Winding Company QEG Cores and Parts in Action in the video below:



FTW builds QEG prototypes and teaches QEG technology to other engineers. FTW offers educational materials and consulting services to independent groups that are building QEG’s.
FTW does not sell QEG’s, mass manufacture QEG’s, or play a decision making role in any small business group that does.
